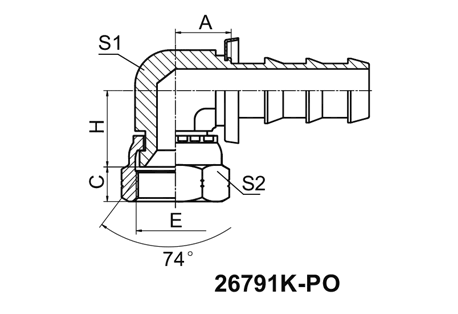

代号 PART NO. | 螺纹E THREAD E | 软管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| 公称内径DN | 标号DASH | A | C | H | S1 | S2 | ||
| 26791 K-04-04PO | 7/16"X20 | 6 | 04 | 11.7 | 9 | 18 | 11 | 17 |
| 26791 K-06-04PO | 9/16"X18 | 6 | 04 | 14 | 10.5 | 2〇.5 | 14 | 19 |
| 26791 K-06-06PO | 9/16"X18 | 10 | 06 | 15.5 | 10.5 | 21 | 16 | 19 |
| 26791 K-08-06PO | 3/4"X16 | 10 | 06 | 16 | 11 | 22.5 | 16 | 24 |
| 26791 K-08-08PO | 3/4"X16 | 12 | 08 | 15.7 | 11 | 22.5 | 19 | 24 |
| 26791K-10-10PO | 7/8"X14 | 16 | 10 | 18.5 | 12 | 27 | 22 | 27 |
| 26791 K-12-12PO | 1.1/16"X12 | 20 | 12 | 21.5 | 15 | 30 | 27 | 32 |
