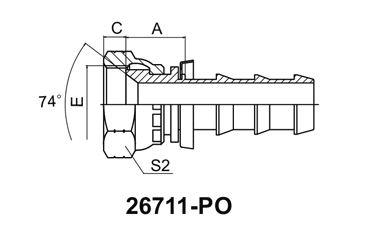

| 代号 | 螺纹E | 软管 HOSE BORE | 尺寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标号DASH | A | C | S2 |
| 26711-04-04PO | 7/16"X20 | 6 | 04 | 12.2 | 9 | 15 |
| 26711-05-04PO | 1/2"X20 | 6 | 04 | 12.2 | 9.5 | 17 |
| 26711-06-06PO | 9/16"X18 | 10 | 06 | 12.5 | 10.5 | 19 |
| 26711-08-06PO | 3/4"X16 | 10 | 06 | 12.5 | 11 | 24 |
| 26711-08-08PO | 3/4"X16 | 12 | 08 | 14.7 | 11 | 24 |
| 26711-10-08PO | 7/8"X14 | 12 | 08 | 15.2 | 13 | 27 |
| 26711-10-10PO | 7/8"X14 | 16 | 10 | 15.7 | 13 | 27 |
| 26711-12-12PO | 1.1/16.X12 | 20 | 12 | 17.4 | 15 | 32 |
| 26711-16-16PO | 1.5/16.X12 | 25 | 16 | 18.6 | 16 | 41 |
