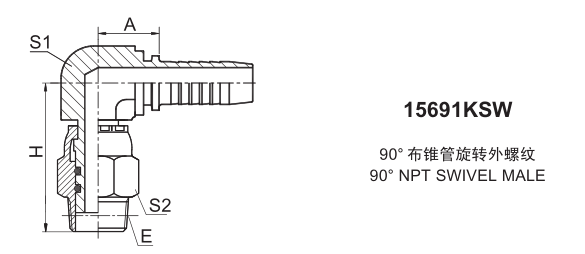

| 代号 | 螺纹 E | 软管 HOSE BORE | 尺寸 DIMENSIONS | ||||
| PART NO. | THREAD E | 公称内径DN | 标号DASH | A | H | S1 | S2 |
| 15691KSW-04-04 | Z1/4"X18 | 6 | 04 | 25 | 59.5 | 16 | 19 |
| 15691KSW-06-06 | Z3/8"X18 | 10 | 06 | 25 | 64.5 | 16 | 22 |
| 15691KSW-08-08 | Z1/2"X14 | 12 | 08 | 28.5 | 71.5 | 19 | 27 |
| 15691KSW-12-12 | Z3/4"X14 | 20 | 12 | 36 | 76.9 | 27 | 32 |
