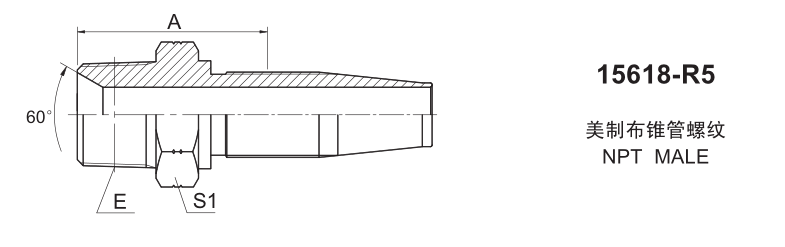

代号 PART NO. | 螺纹E THREAD E | 软管标号 HOSE DASH | 尺寸 DIMENSIONS | |
| L | S1 | |||
| 15618-02-04(R5) | Z1/8"X27 | 04 | 25.5 | 12 |
| 15618-04-04(R5) | Z1/4"X18 | 04 | 30 | 17 |
| 15618-04-06(R5) | Z1/4..X18 | 06 | 31 | 17 |
| 15618-06-05(R5) | Z3/8"X18 | 05 | 32.9 | 19 |
| 15618-06-06(R5) | Z3/8"X18 | 06 | 32 | 19 |
| 15618-08-08(R5) | Z1/2"X14 | 08 | 40.5 | 22 |
| 15618-12-10(R5) | Z3/4"X14 | 10 | 42.5 | 30 |
| 15618-12-12(R5) | Z3/4"X14 | 12 | 43 | 30 |
| 15618-16-16(R5) | Z1"X11.5 | 16 | 46.5 | 36 |
| 15618-20-20(R5) | Z1.1/4"X11.5 | 20 | 51.5 | 46 |
| 15618-24-24(R5) | Z1.1/2"X11.5 | 24 | 52.5 | 50 |
| 15618-32-32(R5) | Z2"X11.5 | 32 | 55 | 65 |
